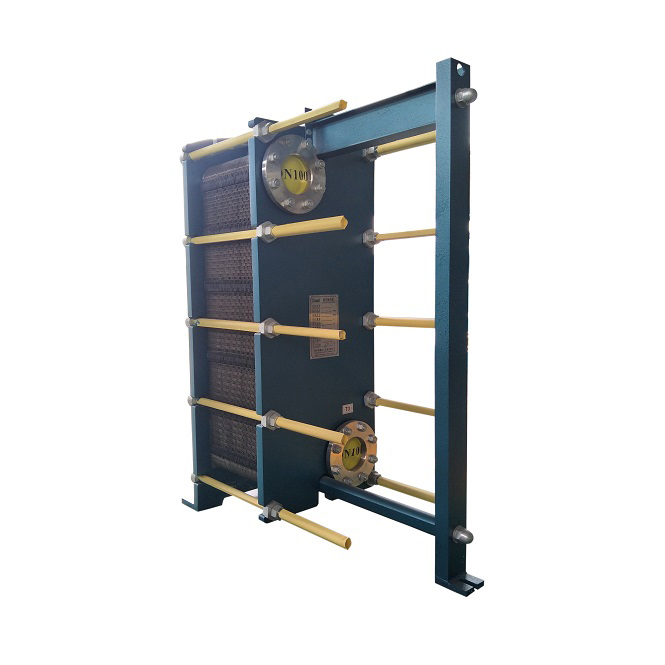

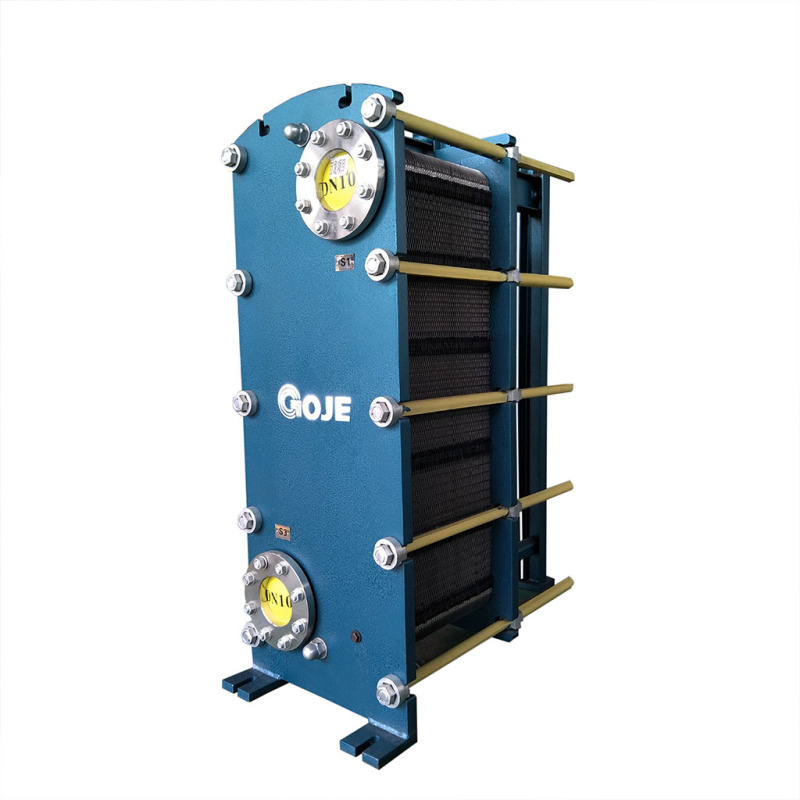

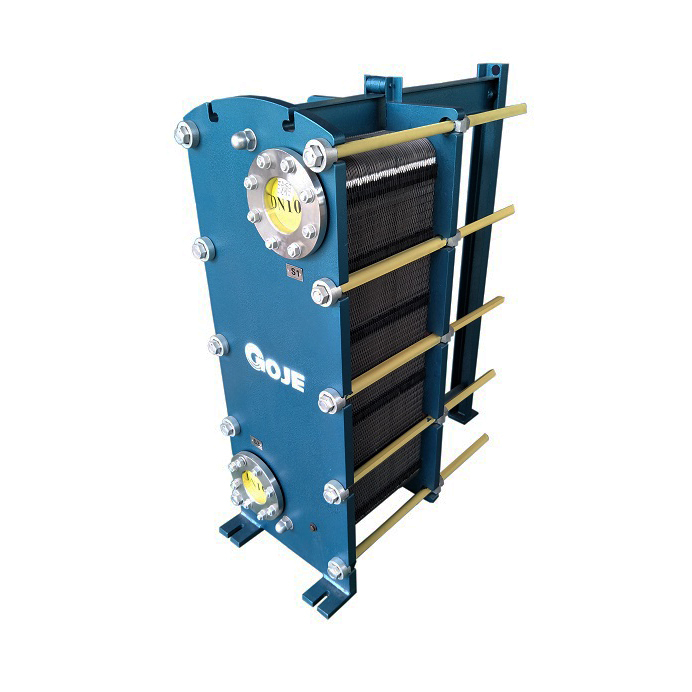

Plate Heat Exchanger GS30

The plate heat exchanger is composed of a set of corrugated metal plates with four corner holes for the passage of two liquids for heat transfer. The metal sheets are installed in a frame with fixed plates and movable pressure plates on the sides, and are clamped with clamping bolts. Sealing gaskets are installed on the plates to seal the fluid passages and guide the fluids to alternately flow into their respective flow passages to form heat exchange. The flow rate, physical properties, pressure drop and temperature difference of the fluid determine the number and size of the plates. The corrugated plates not only increase the degree of turbulence, but also form many supporting points, which are enough to withstand the pressure difference between the media.
Plate heat exchanger is an ideal equipment for liquid-liquid, liquid-vapor heat exchange. It has the characteristics of high heat exchange efficiency, small heat loss, compact and light structure, small footprint, wide application and long service life. In the case of the same pressure loss, its heat transfer coefficient is 3-5 times higher than that of the tubular heat exchanger, and its floor area is one-third of that of the tubular heat exchanger, and the heat recovery rate can be as high as 90%.
